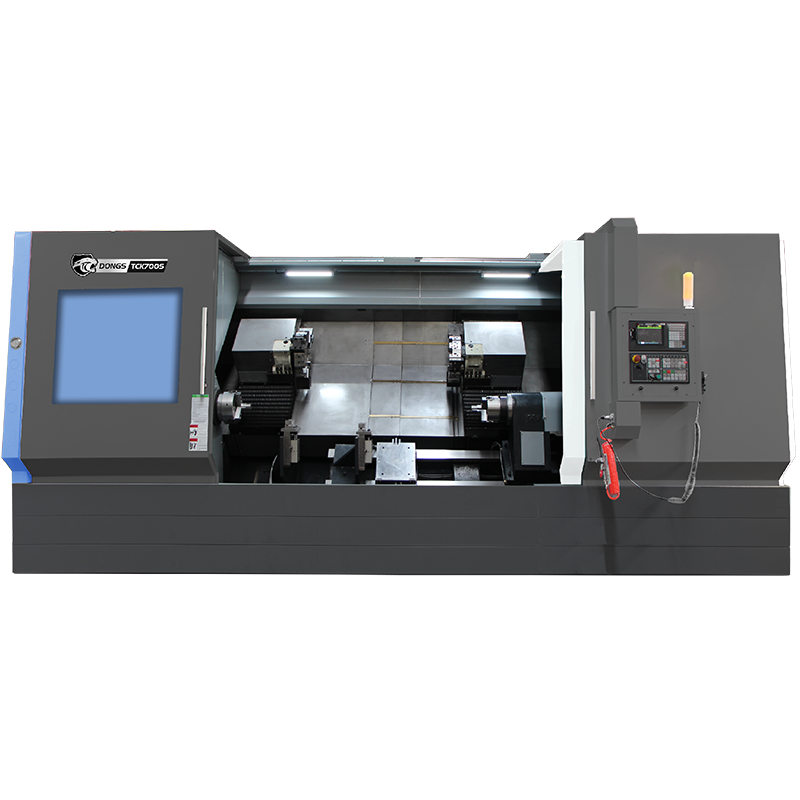

TCK-700S
- Double turrets simultaneously double the machining efficiency
- Equipped with automatic brackets to assist loading and unloading
- Can be connected to automated production lines
- Eccentric tooling automatic counterweight
- It is suitable for all kinds of vehicle axle processing
Introduction
Features of inclined bed lathe：

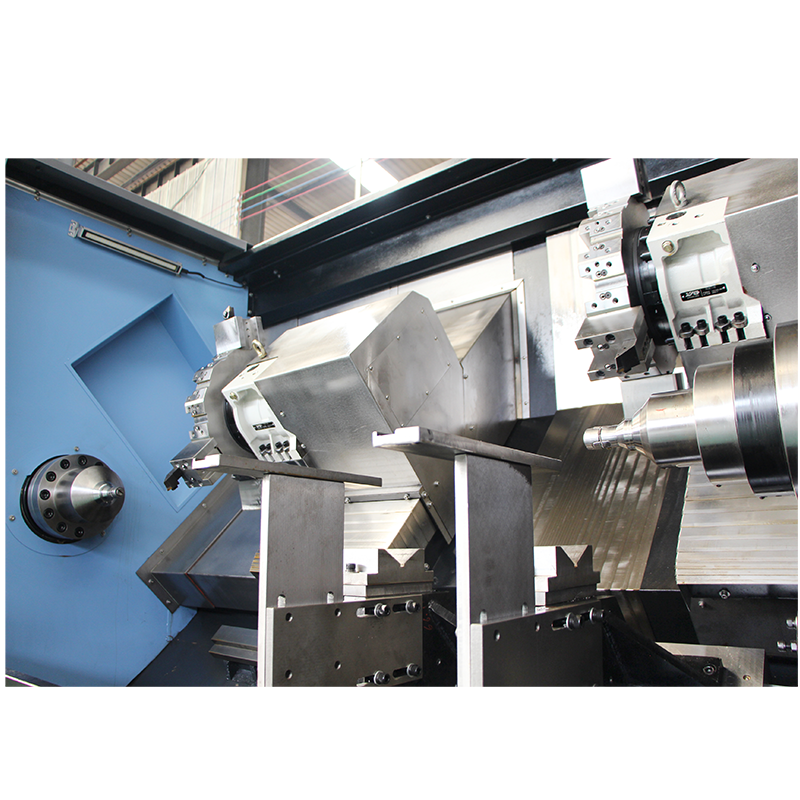

•Double turrets simultaneously double the machining efficiency
•Equipped with automatic brackets to assist loading and unloading
•Can be connected to automated production lines
•Eccentric tooling automatic counterweight

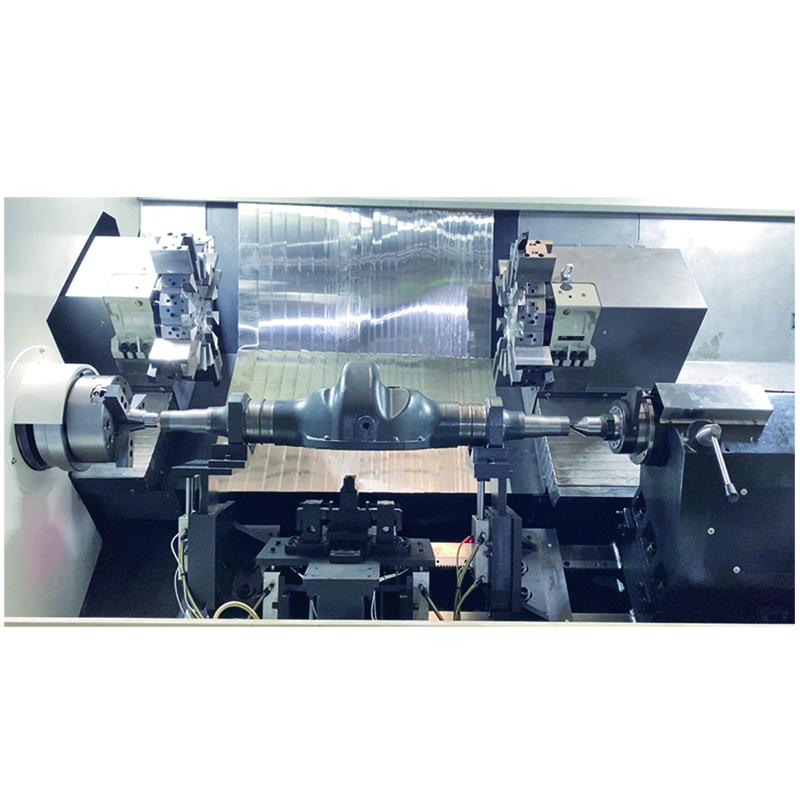

•It is suitable for all kinds of vehicle axle processing
| Specifications | Unit | TCK700S |
| Swing over bed | mm | Φ780 |
| Swing over slide | mm | ф500 |
| Max machining length | mm | 2500 |
| Spindle head form | - | A2-8/A2-11 |
| Spindle motor power | kw | 22 |
| Max spindle speed | rpm | 2000 |
| Diameter of spindle through hole | mm | Φ88/105 |
| Tilt angle | deg | 45° |
| Clamping system | - | Hydraulic chuck/custom fixture |
| Turret form | - | Workstation Servo Hydraulic Cutter Tower |
| X-axis travel | mm | 350 |
| Z-axis travel | mm | 800+1500 |
| X / Z axis motor torque | n.m | 22/22 |
| Specification of X / Z screw | - | 5008/6312 |
| Repeat positioning accuracy | mm | ±0.004 |
| Tool size （turning / boring） | inch | 25"/32" |
| Tailstock sleeve diameter / travel | mm | 2200 |
| Sleeve taper | MT | 6 |
| Dimensions | m | 6.5×2.3×2.55 |
| Machine weight (approx) | t | 11 |
