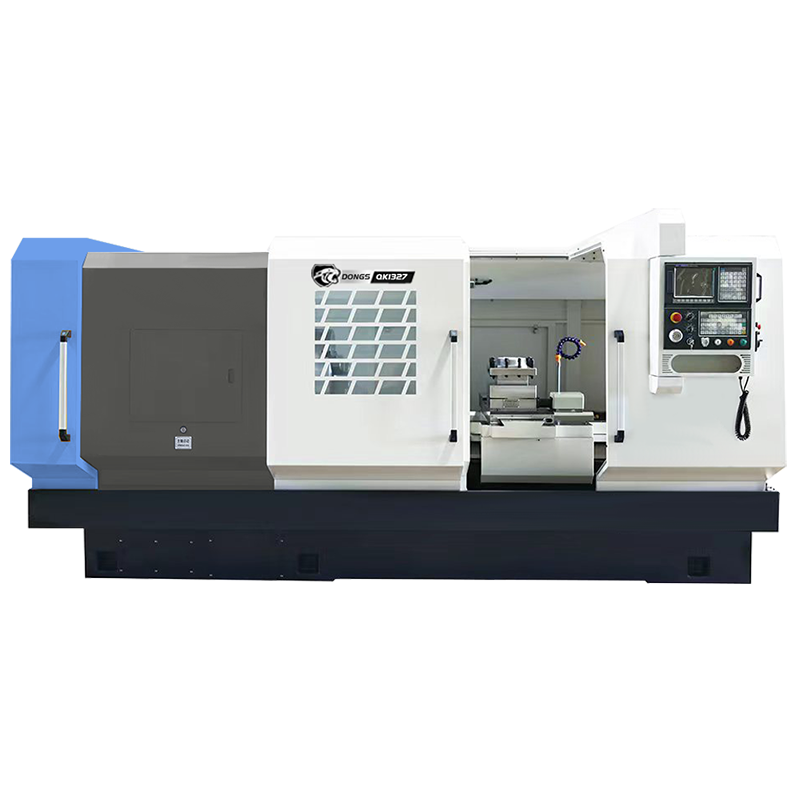

CNC Pipe Threading Lathe
- The machine bed is constructed of high-quality, high-strength cast iron for superior rigidity and precision
- The guide rails are ultrasonically hardened for high hardness and long life
- The guide rails are laminated with a plastic-coated surface for excellent wear resistance and high precision

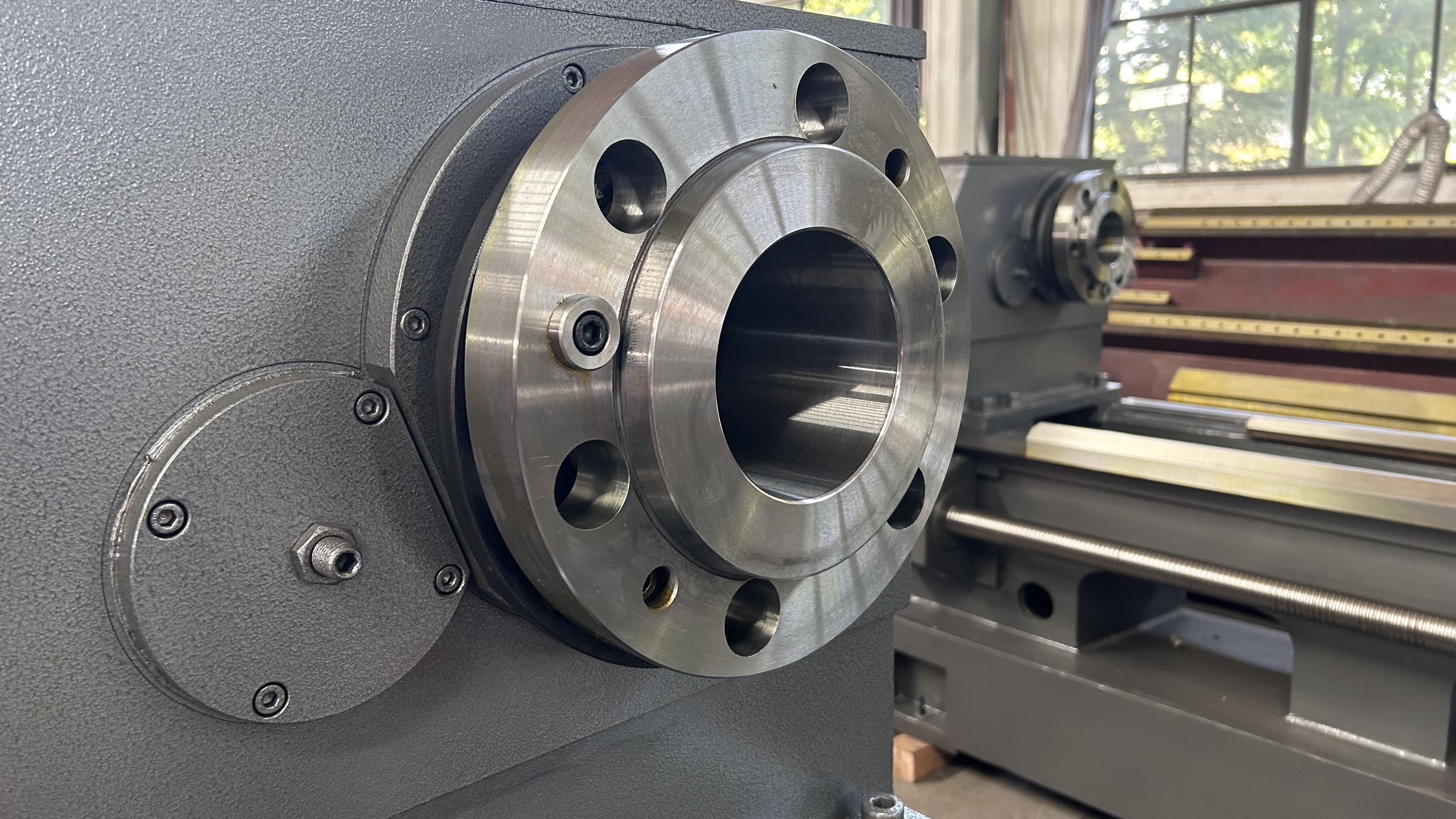

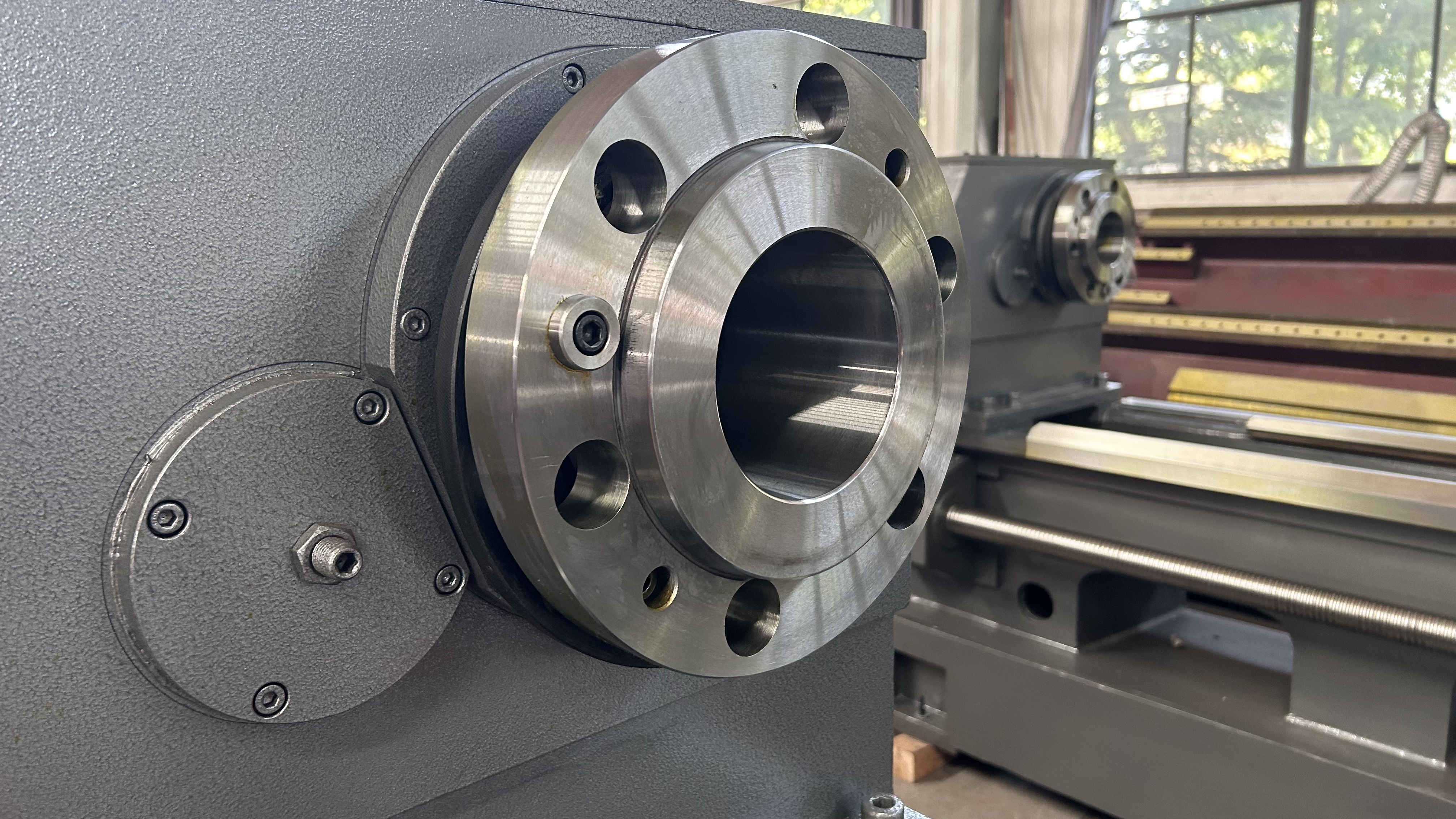

- The spindle has a large bore for high throughput, and the dual chucks provide stable workpiece clamping
Introduction
| Model | （Unit） | QK1327 | QK1330 | QK1332 | |
| Max dia.swing over bed | mm | 800 | |||
| Max dia.swing over cross slide | mm | 480 | |||
| Max.length of work-piece | mm | 1500 | |||
| Pipe threading range | mm | Φ70-273 | Φ80-295 | Φ80-320 | |
| Width of bed | mm | 600/650 | |||
| Spindle bore | mm | 280 | 305 | 325 | |
| Spindle center height | mm | 400 | |||
| Power of spindle motor | KW | 15 | 15/22 | ||
| Mode of spindle speed | / | Two gears smooth adjustment | |||
| Range of spindle speed | r/min |
Low range (L): 20-100 High-end (H): 100-300 |
|||
| Max.traverse of X/Z | mm |
X:420 Z:1250 |
|||
| X/Z rapid traverse | mm/min | 4000/5000 | |||
| Tailstock quill | Diameter | mm | 100 | ||
| Travel | mm | 250 | |||
| Taper | / | MT6 | |||
| Turret | Model | HAK21300 | SLD170A04N | ||
| No.of tool stations | / | Vertical four-station | |||
| Dimension | mm | 32×32 | |||
| S | 2.6 | ||||
| Turret indexing time | |||||
| Chuck | / | K72-780 four jaw chuck | |||
| Overall dimensions(L*W*H) | mm | 4200×2100×1900 | |||
| Machine weight | T | 7/7.7 | 7.5/8.2 | 8/8.7 | |
FAQ
Q:Who are we?
A:We are an innovation leader in the field of CNC equipment. We are a manufacturer specializing in the production of medium and large-scale high-efficiency turning centers, CNC slant-bed lathes, CNC flat lathes, machining centers, and vertical lathes. We sincerely invite global strategic partners to discuss industry trends together.
Q：How can I choose the most suitable machine?
A：Please tell me your specifications and we can choose the best model for you, or you choose the exact model.
Q:Do you have a physical factory?
A:Yes, we are a CNC lathe manufacturer in Tengzhou City, Shandong Province. We have a professional technical team, sales team and after-sales team.
Q:What services can we provide?
A:Accepted delivery terms: FOB, CFR, CIF, EXW; Accepted payment currencies: USD, RMB; Accepted payment types: T/T, L/C, Western Union; Used languages: English, Chinese
Q:How do we ensure quality?
A:Pre-production samples are always carried out before mass production; final inspection is always carried out before shipment;
Q:Why should you buy from us instead of other suppliers?
A:We have been specialized in manufacturing these products for 20 years and have obtained ISO 9001
certification, CE certification and EAC certification.
Q:Can you customize the machine?
A:Yes, we integrate design and development, with experienced engineers and assembly technicians.
Q:Can I visit your factory?
A:Okay, you're very welcome.
