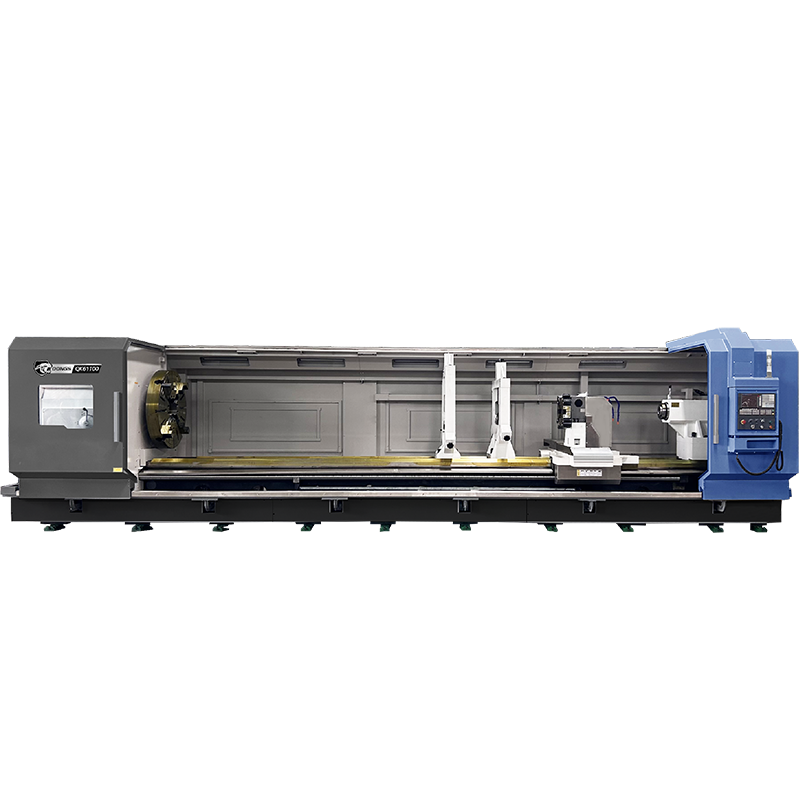

Pipe Thread CNC Lathe

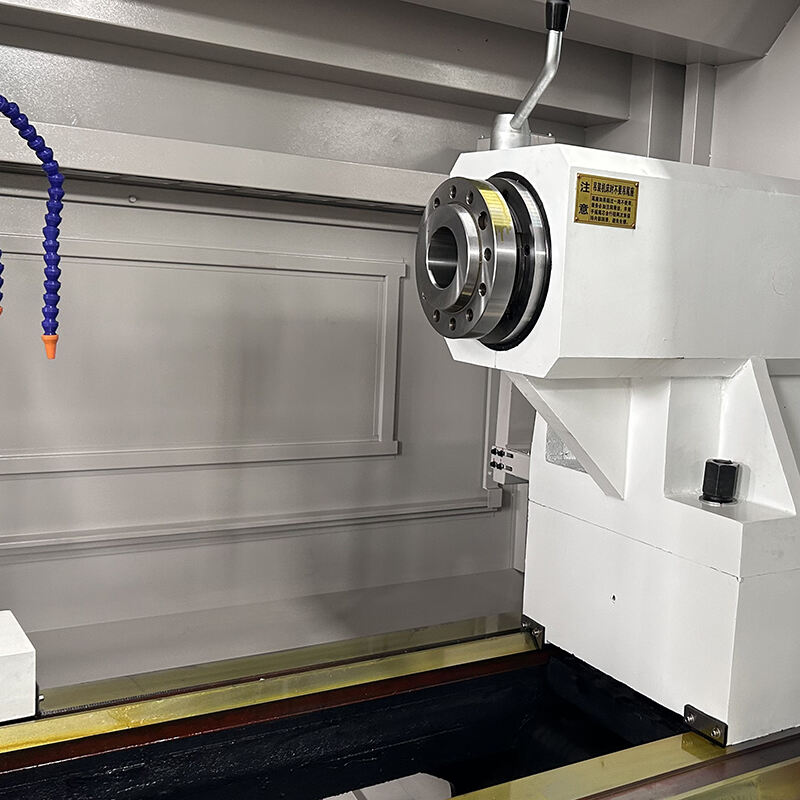

- The spindle utilizes three-point support
- Guideways utilize high-frequency hardening and grinding
- Bed guideway width
- Integrated gearbox spindle unit
Introduction
| model | QK61100 | QK61322 | QK61327 |
| Swing Over Bed | 860mm | ||
| Swing Over Cross Slide | 540mm | ||
| Cross Slide Width (X-axis) | 330mm | ||
| Upper Bed Guideway Width | 600mm | ||
| Spindle Bore Diameter | 196mm | 227mm | 280mm |
| Spindle Speed Range | 1500rpm | 25-84/85-342RPM | |
| Spindle | Manual two-speed | ||
| Distance Between Centers | 1500mm | ||
| Minimum Z-axis Feed Increment | 0.001mm/min | ||
| Minimum X-axis Feed Increment | 0.0005mm/min | ||
| Z-axis Travel Range | 3000mm | ||
| X-axis Travel Range | 470mm | ||
| X-axis Positioning Accuracy | 0.015mm/100mm | ||
| Z-axis Positioning Accuracy | 0.02mm/100mm | ||
| X-axis Repeat Positioning Accuracy | 0.01mm/100mm | ||
| Z-axis Repeat Positioning Accuracy | 0.01mm/100mm | ||
| Maximum Machining Length | 2850mm | ||
| Rapid Traverse Rate (X/Z-axis) | 6000mm/min | ||

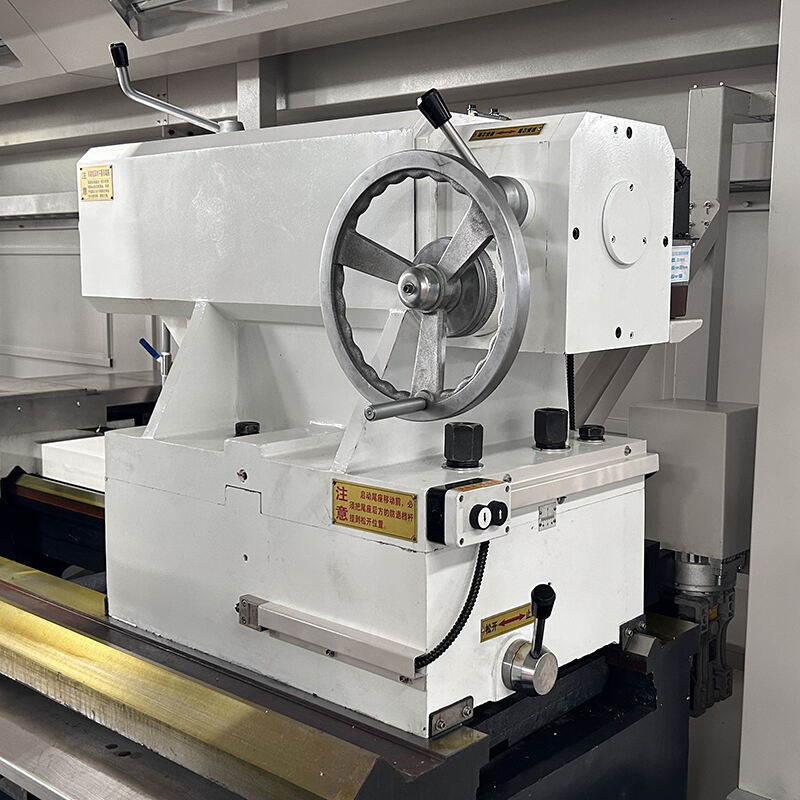

| Tailstock Quill Diameter | 130mm | ||
| Tailstock Quill Taper | MT6 | ||
| Tailstock Quill Maximum Travel | 250 mm | ||
| Main Motor Power | 15KW | ||
| Tool Turret Repeat Positioning Accuracy | 0.002mm | ||
