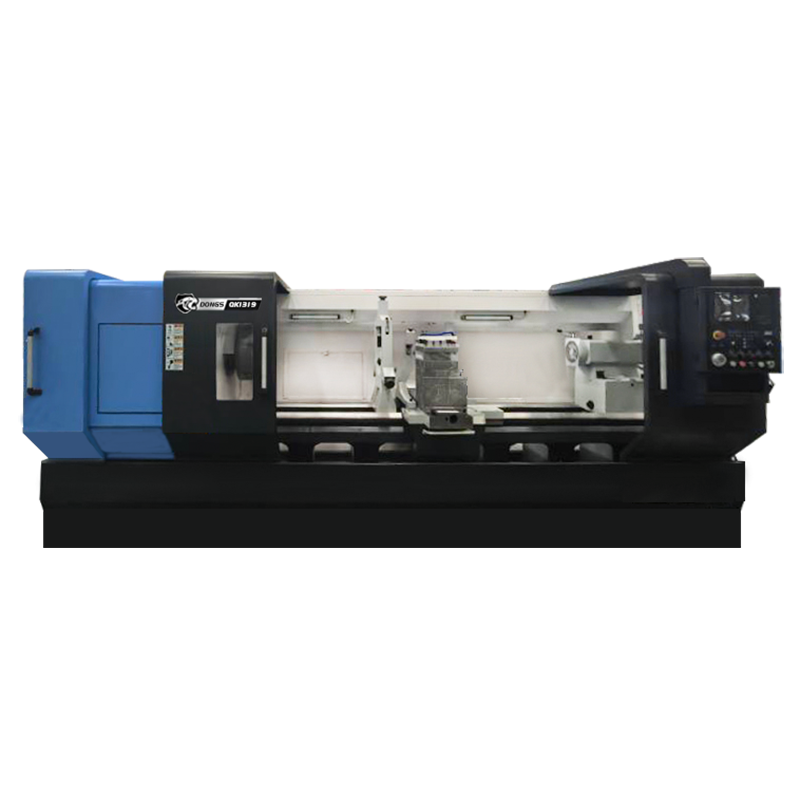

CNC Pipe Threading Lathe
- The spindle utilizes three-point support
- Guideways utilize high-frequency hardening and grinding
- Bed guideway width
- Integrated gearbox spindle unit
Introduction
| Model | （Unit） | QK1319 | QK1322 | QK1325(550) | QK1325(600/650) | |
| Max dia.swing over bed | mm | 630 | 670 | 800 | ||
| Max dia.swing over cross slide | mm | 330 | 370 | 535 | 480 | |
| Max.length of work-piece | mm | 1500 | ||||
| Pipe threading range | mm | Φ50-193 | Φ50-220 | Φ50-250 | Φ70-250 | |
| Width of bed | mm | 550 | 600/550 | |||
| Spindle bore | mm | 200 | 225 | 255 | ||
| Spindle center height | mm | 300 | 322 | 400 | ||
| Power of spindle motor | KW | 11 | 15 | 11 | ||
| Mode of spindle speed | / | Two gears smooth adjustment | ||||
| Range of spindle speed | r/min | Low range (L): 20-120 | Low range (L): 20-120 | Low range (L): 20-100 | Low range (L): 15-100 | |
| High-end (H): 100-500 | High-end (H): 100-500 | High-end (H): 100-350 | High-end (H): 100-350 | |||
| Max.traverse of X/Z | mm |
X:350 Z:1250 |
X:420 Z:1250 |
|||
| X/Z rapid traverse | mm/min | 4000/6000 | 4000/5000 | |||
| Tailstock quill | Diameter | mm | 100 | |||
| Travel | mm | 250 | ||||
| Taper | / | MT5 | MT6 | |||

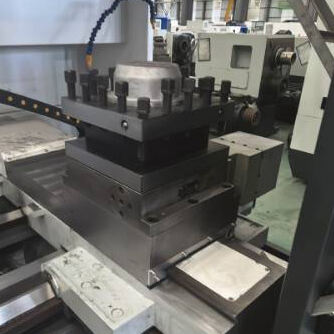

| Turret | Model | HAK21240 | ||||
| No.of tool stations | / | Vertical four-station | ||||
| Dimension | mm | 32×32 | ||||
| S | 2.6 | |||||
| Turret indexing time | ||||||
| Chuck | / | K11-500 three jaw chuck | K11-630 three jaw chuck | K11-500 three jaw chuck | ||
| Overall dimensions(L*W*H) | mm | 3800×1900×1900 | 4200×2100×1900 | |||
| Machine weight | T | 5.3 | 5.4 | 5.5 | 6.5/7.2 | |
FAQ
Q:Who are we?
A:We are an innovation leader in the field of CNC equipment. We are a manufacturer specializing in the production of medium and large-scale high-efficiency turning centers, CNC slant-bed lathes, CNC flat lathes, machining centers, and vertical lathes. We sincerely invite global strategic partners to discuss industry trends together.
Q：How can I choose the most suitable machine?
A：Please tell me your specifications and we can choose the best model for you, or you choose the exact model.
Q:Do you have a physical factory?
A:Yes, we are a CNC lathe manufacturer in Tengzhou City, Shandong Province. We have a professional technical team, sales team and after-sales team.
Q:What services can we provide?
A:Accepted delivery terms: FOB, CFR, CIF, EXW; Accepted payment currencies: USD, RMB; Accepted payment types: T/T, L/C, Western Union; Used languages: English, Chinese
Q:How do we ensure quality?
A:Pre-production samples are always carried out before mass production; final inspection is always carried out before shipment;
Q:Why should you buy from us instead of other suppliers?
A:We have been specialized in manufacturing these products for 20 years and have obtained ISO 9001
certification, CE certification and EAC certification.
Q:Can you customize the machine?
A:Yes, we integrate design and development, with experienced engineers and assembly technicians.
Q:Can I visit your factory?
A:Okay, you're very welcome.
