cnc lathe
- 45 DEG Table angle
- High precision Roller linear guide
- High precision ball screw
- Imported precision bearing
- Integrated casting frame
- High rigidity heavy-duty single spindle
- Hydraulic programmable tailstock
Introduction
一、 Main structural features of machine tools:
1、The 45° slanted bed is cast in one piece and is made of high-strength cast iron. The reinforcing ribs are optimally arranged through finite element analysis, high-strength cast iron materials, resin sand molding, and sufficient secondary aging and natural aging to make the basic parts of the machine tool highly rigid and ensure the stability of the machine tool for long-term use.
2、Both X and Z axes use high-precision, high-load capacity, and high-reliability linear rolling guides. The Z axis uses a 6-slider design to greatly increase rigidity, and with automatic forced lubrication, it reduces the friction resistance of the feed motion and improves the accuracy and life of the machine tool; the feed speed and positioning accuracy of the machine tool are higher.

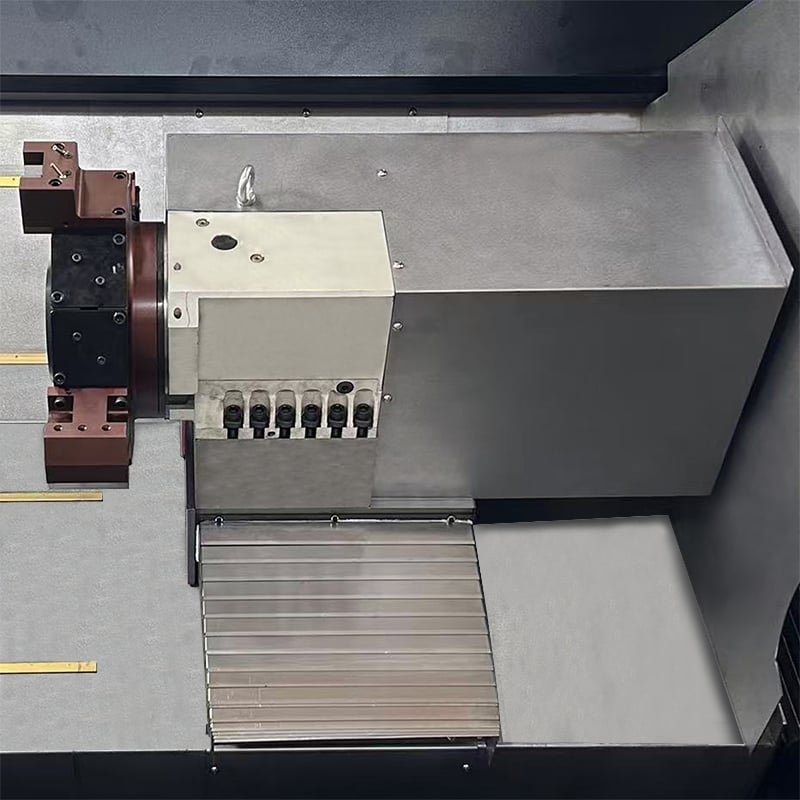

3、The tailstock part is programmable control, the sleeve is an internal rotation structure, and the use of a pin can greatly improve the cutting stability and accuracy. The tailstock body is locked by hydraulic automatic locking, and the overall movement is standardly equipped with hydraulic automatic, and servo motor drive is optional.

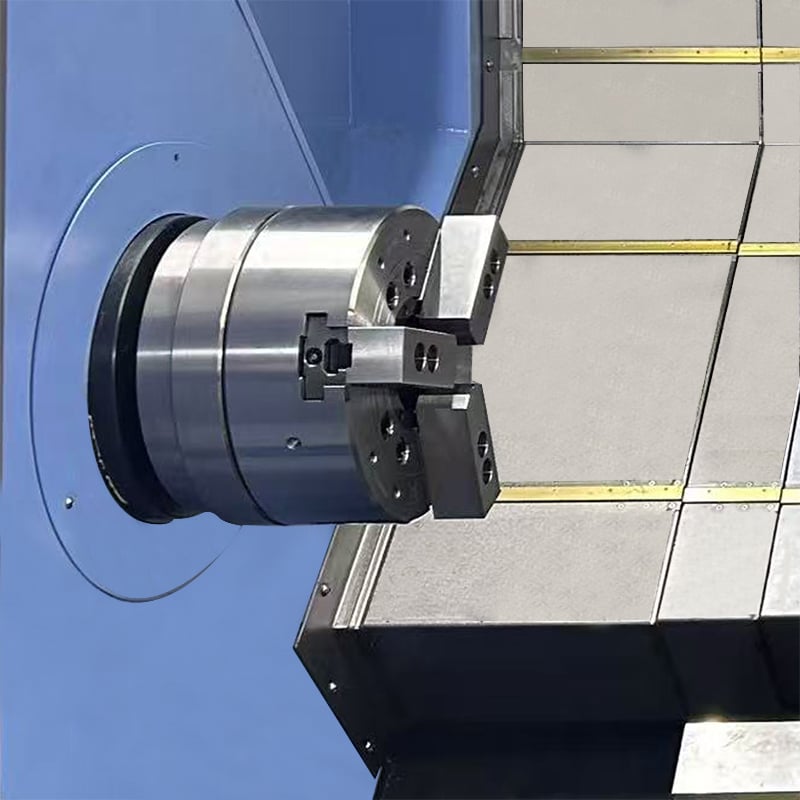

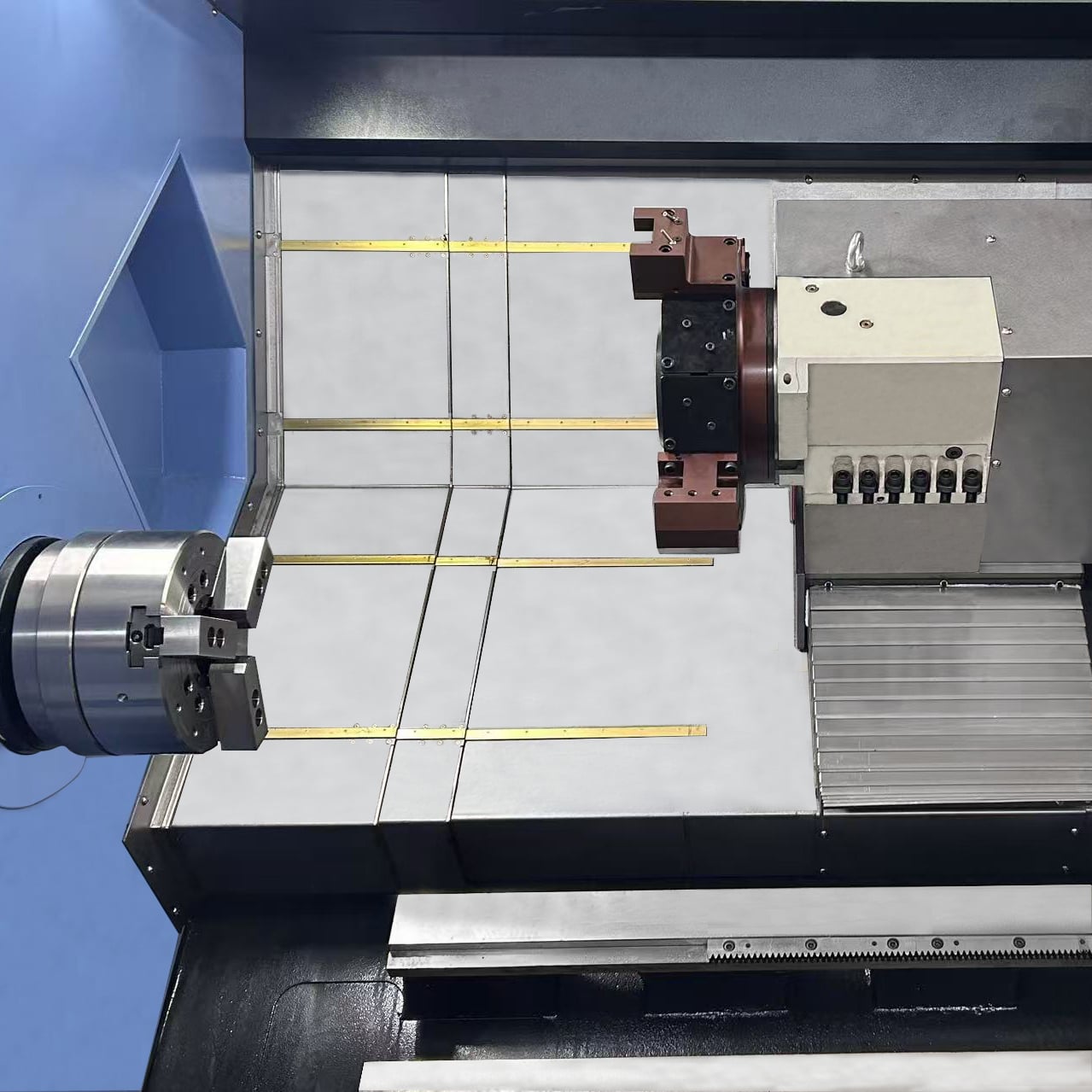

4、The spindle adopts a combination of large-diameter precision angular contact thrust ball bearings and double-row cylindrical roller bearings. The high-power and high-torque servo motor drives the spindle, which has excellent rigidity and high torque at low speed.
| Technical specifications | unit | TCK800D/ TCK800DY | |||
| Processing range | Maximum turning diameter on the bed | mm | Φ850 | ||
| Maximum turning diameter on the saddle | mm | Φ630 | |||
| Maximum turning diameter | mm | Φ650 | |||
| Center distance | mm | 1000/1500/2000/3000/4000/5000 | |||
| Spindle | Spindle head type | mm | A2-11 | A2-15 | |
| Spindle through hole diameter | mm | 132 | 181 | 220 | |
| Bar diameter ≤ | mm | 116 | 181 | 220 | |
| Maximum spindle speed | r/min | 1800 | 1600 | 1200 | |
| Main motor rated output | Kw | 30 | |||
| Maximum spindle output torque | NM | 573NM | |||
| Fixture | Hydraulic chuck | inch | 12/15/18/21/24 | ||
| Tailstock | Tailstock sleeve Internal rotation structure | mm | 1000/1500 MT5 2000 and above MT6 | ||
| Tailstock movement form | / | Hydraulic programmable fully automatic | |||
| Saddle | Tilt angle | DEG | 45 ° | ||
| Move distance X | mm | 350+20 | |||
| Move distance Z | mm | 1000/1500/2000/3000/4000/5000 | |||
| Y axis travel | mm | ±75 | |||
| Rapid moving speed X/Z | m/min | 16/16 | |||
| Servo motor X/Y/Z | KW | 5.9/3.1/5.9 | |||
| turret | Type | Servo Hydraulics | BMT65 horizontal 12 stations | ||
| Adjacent tool change time | S | 0.5 | |||
| Number of tool positions | / | 12 stations | |||
| Tool size (turning/boring) | mm | 32×32/Φ50 | |||
| Spring chuck model | / | ER40 | |||
| Power turret power | KW | 5.5-7.5 | |||
| Power turret speed | rpm | 1500-8000 | |||
| Center distance | Dimensions | Net weight/gross weight | |||
| 1000 | 5500X2300X2400mm | 7600/7900KG | |||
| 1500 | 6200X2300X2400mm | 8800/9500KG | |||
| 2000 | 6700X2300X2400mm | 9800/10500KG | |||
| 3000 | 8000X2300X2400mm | 12500/13300KG | |||
| 4000 | 9000X2300X2400mm | 14800/15800KG | |||
| 5000 | 10000X2300X2400mm | 17000/18000KG | |||
