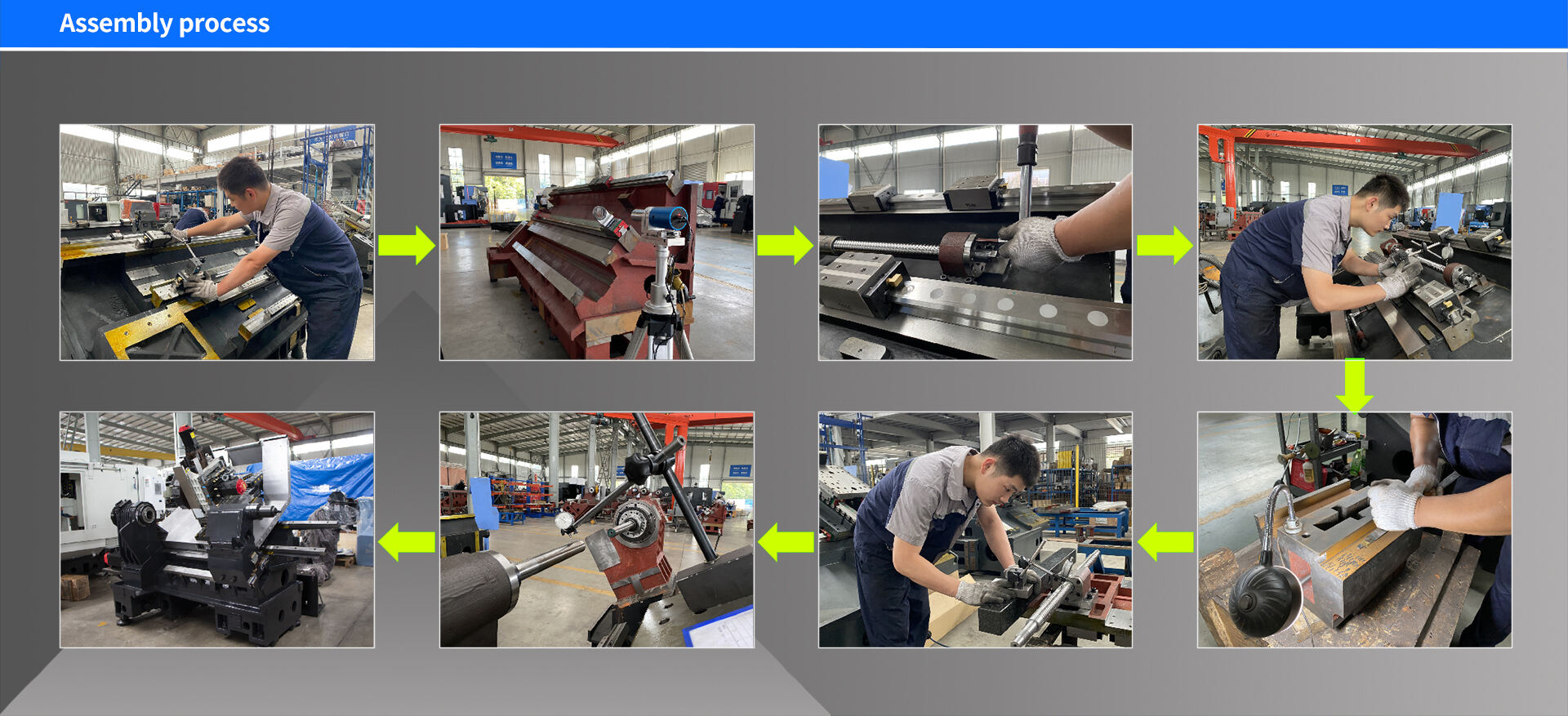

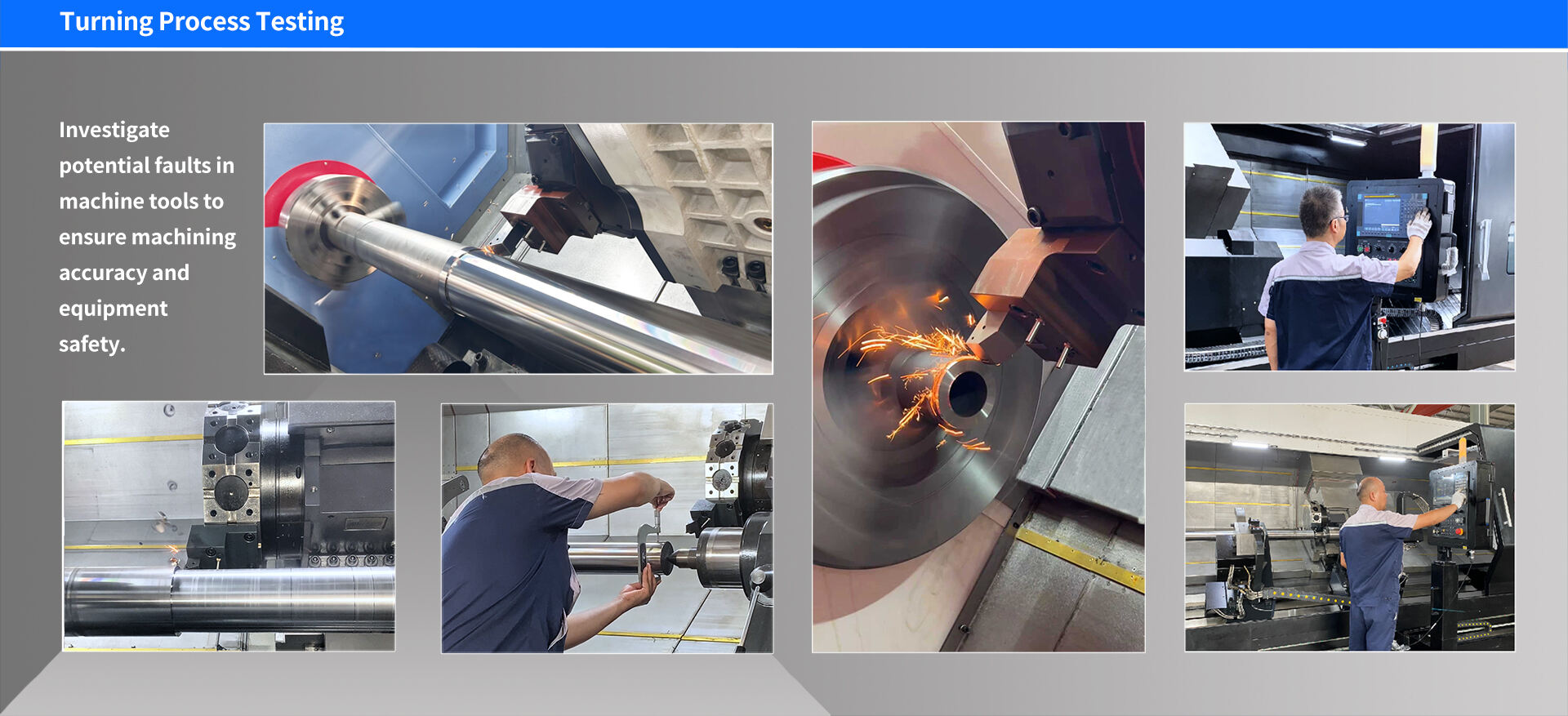

Introduction
Technical Specifications
Technical specifications |
unit |

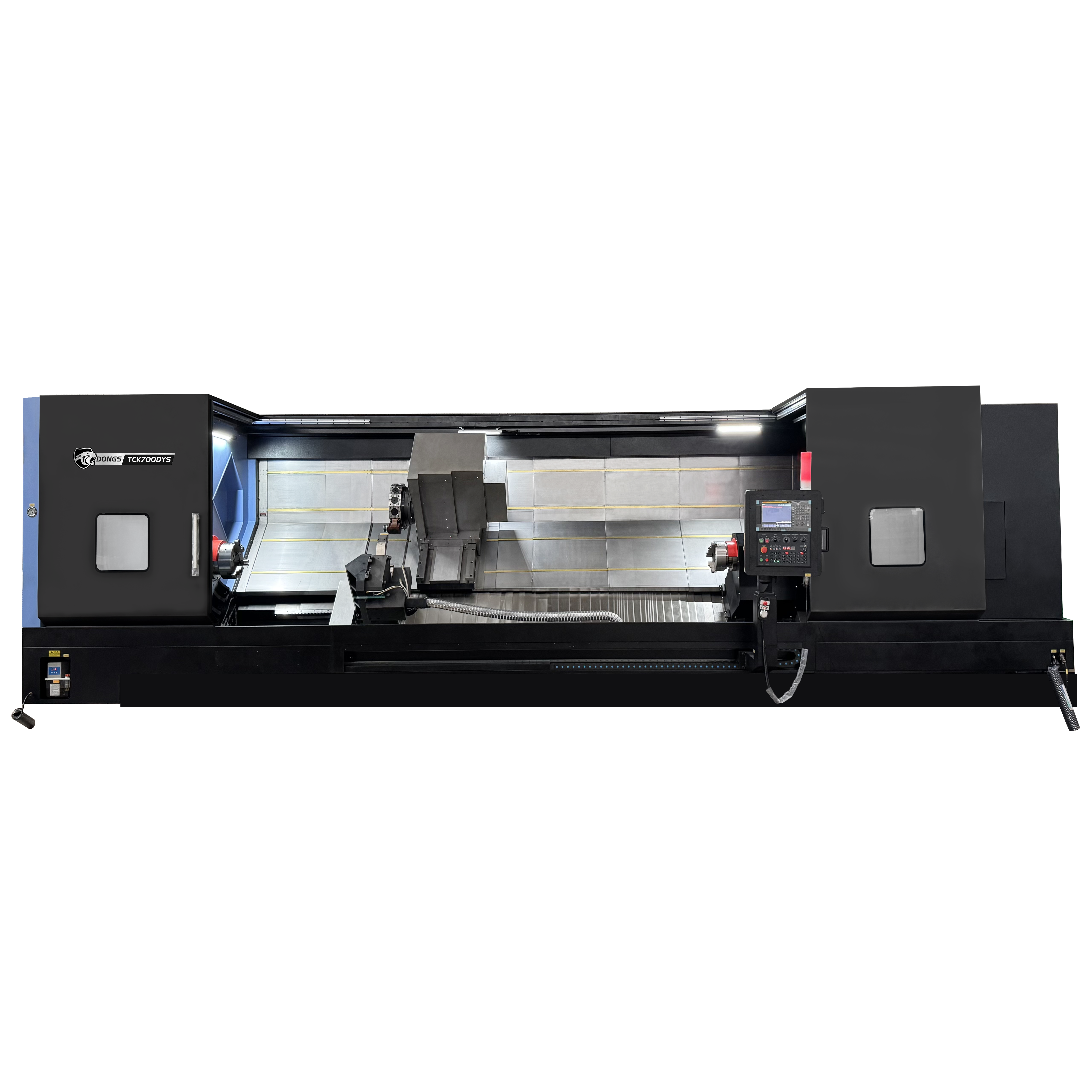

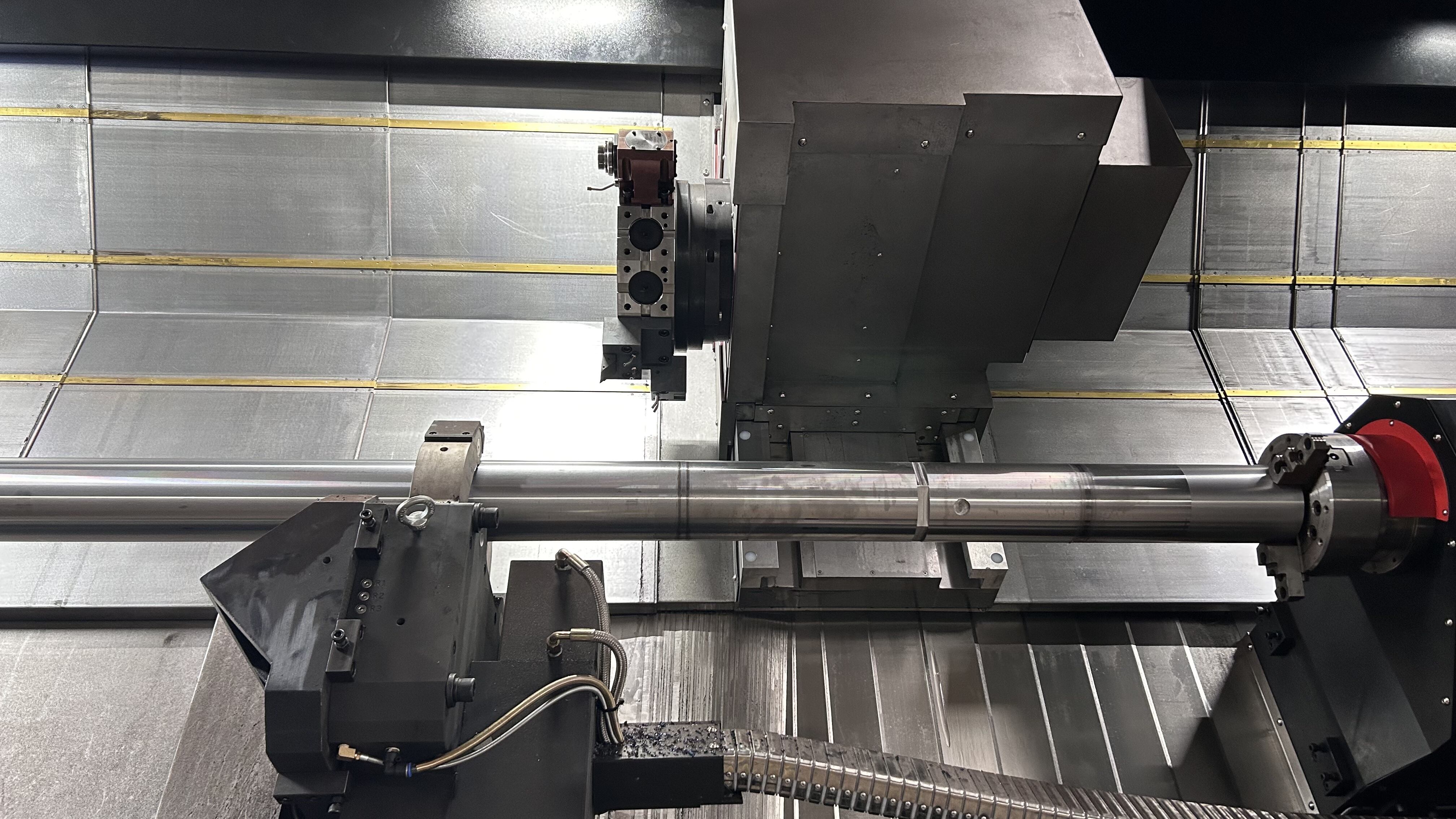

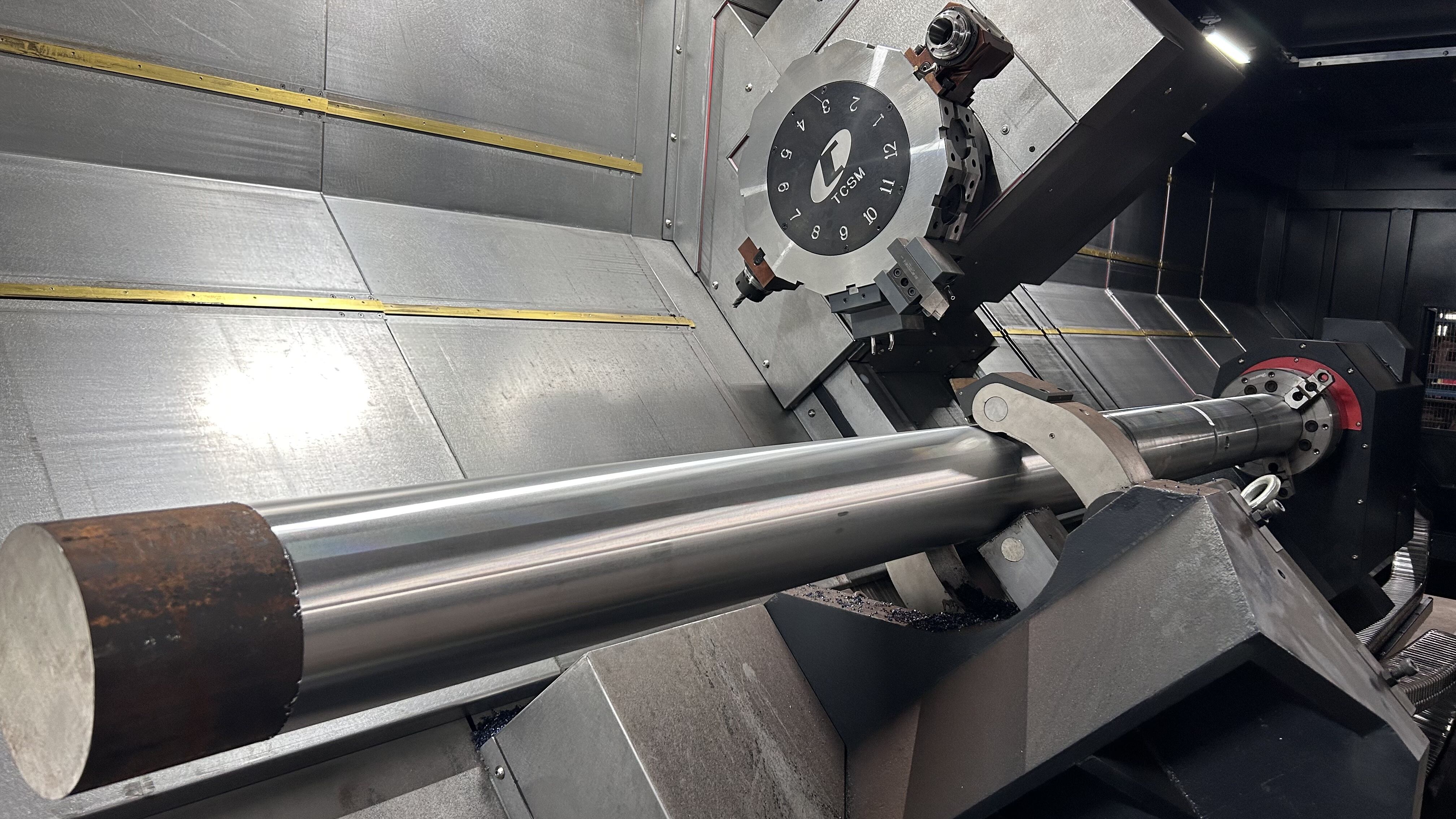

TCK700DYS |
|||
Processing range |
Maximum swing diameter on the bed |
mm |
800 |
||
|
Maximum swing diameter on saddle |
mm |
520 |
||
|
Maximum turning diameter |
mm |
620 |
||
|
Center distance |
mm |
1100/1600/2100/3100/4100/5100 |
||
Spindle |
Spindle nose specifification |
mm |
A2-11 |
A2-15 |
|
|
Spindle diameter |
mm |
105 |
132 |
181 |
|
Spindle through hole diameter |
mm |
92 |
115 |
166 |
|
Spindle speed |
r/min |
2000 |
1800 |
1000 |
|
Main motor power |
K |
22/30 |
||
Sub-spindle |
Spindle nose specifification |
/ |
A2-6 |
||
|
Spindle diameter |
mm |
66 |
||
|
Spindle through hole diameter |
mm |
50 |
||
|
Chuck size |
inch |
8/10 |
||
|
Spindle speed |
rpm |
4000 |
||
|
Main motor power |
K |
22 |
||
Fixture |
Chuck size |
inch |
12/15/18/21/24 |
||
Saddle |
Tilt Angle |
DEG |
45° |
||
|
X axis travel |
mm |
380 |
||
|
Z axis travel |
mm |
1090/1590/2090/3090/4090/5090 |
||
|
Y axis travel |
mm |
±75 |
||
|
Fast moving speed X/ Y/ Z |
m/min |
16/10/16 |
||
|
Servo motor X/ Y/ Z |
KW |
2.5/1.4/2.5 |
||
Turret |
Type |
Power turret |
BMT65 horizontal 12 stations |
||
|
Tool change time |
S |
0.5 |
||
|
Number of tool positions |
/ |
12 stations |
||
|
Tool size (turning/boring) |
mm |
32 × 32 / 50 |
||
|
Collet chuck model |
/ |
ER40 |
||
|
Driven tool power |
KW |
5.5-7.5 |
||
|
Driven tool speed of rotation |
rpm |
4000 |
||
