cnc machines
- Machine tool manufacturers
- Precision machine tool manufacturers
- High precision Roller linear guide
- High precision ball screw
- Imported precision bearing
- Servo hydraulic turret
- Main shaft synchronous belt drive
Introduction

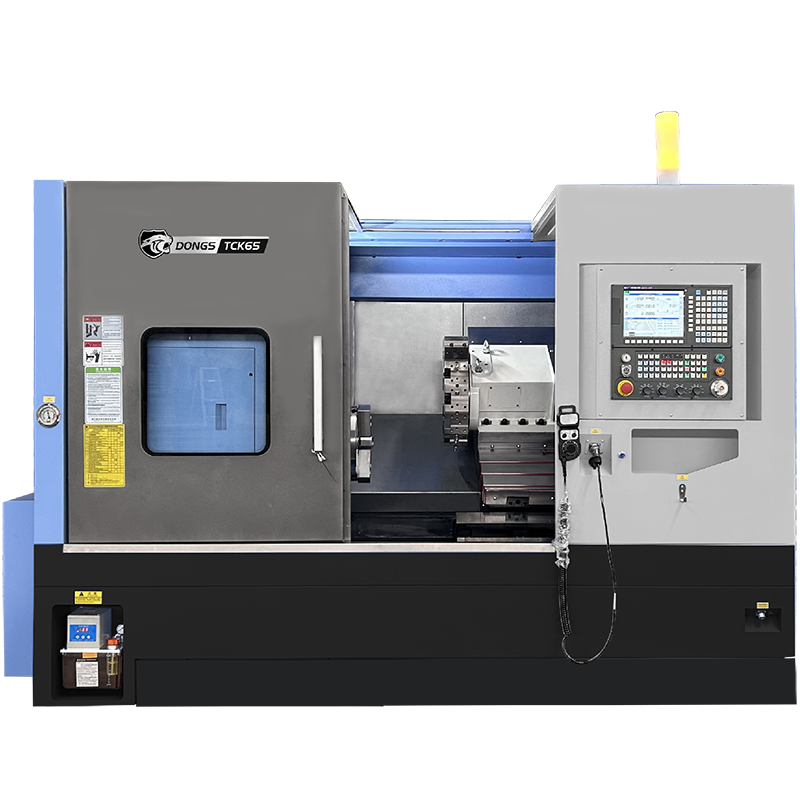

| Technical specifications | unit | TCK65 | |
| Processing range | Maximum rotation diameter on the bed | mm | 650 |
| Maximum rotation diameter on the pallet | mm | 360 | |
| Maximum processing diameter | mm | 370 | |
| Spindle | Spindle head type | mm | A2-8 |
| Spindle through hole diameter | mm | 105 | |
| Bar diameter＜ | mm | Solid Cylinder/Hollow Cylinder (91) | |
| Maximum spindle speed | r/min | 1500 | |
| Main motor rated output | Kw | 15KW rated 1000 rpm high torque (equivalent to 22KW) | |

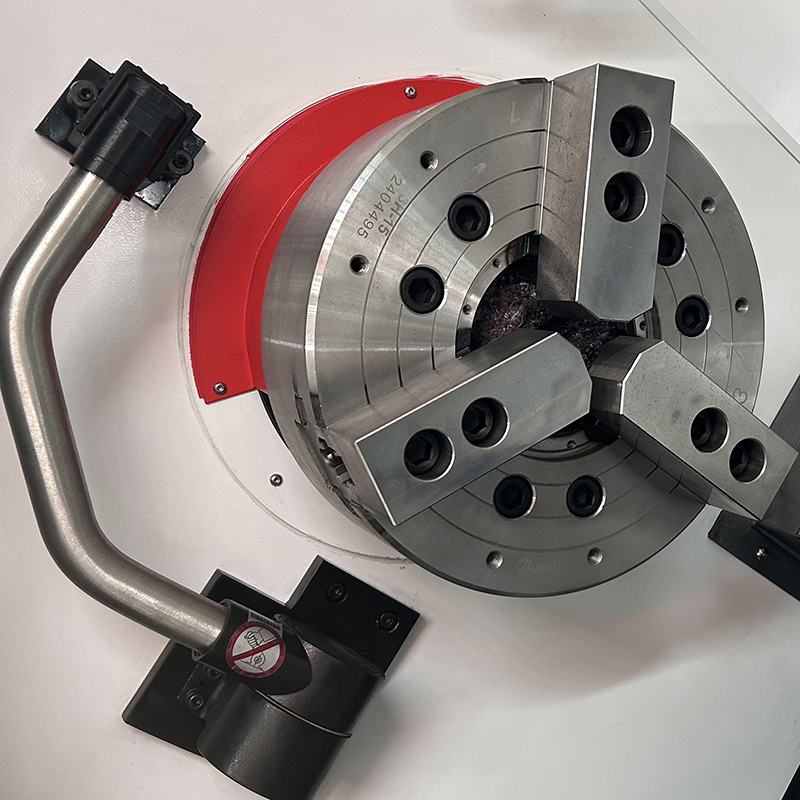

| Fixture | Hydraulic chuck | inch | 12 |
| Saddle | Tilt Angle | DEG | 30 |
| X/Z axis screw specifications | / | 3210/4010 | |
| X/Z axis rail specifications | / | 45/45 Roller | |
| X/Z servo motor power | KW | 1.5 | |
| Moving distance X/Z | mm | 205/570 | |

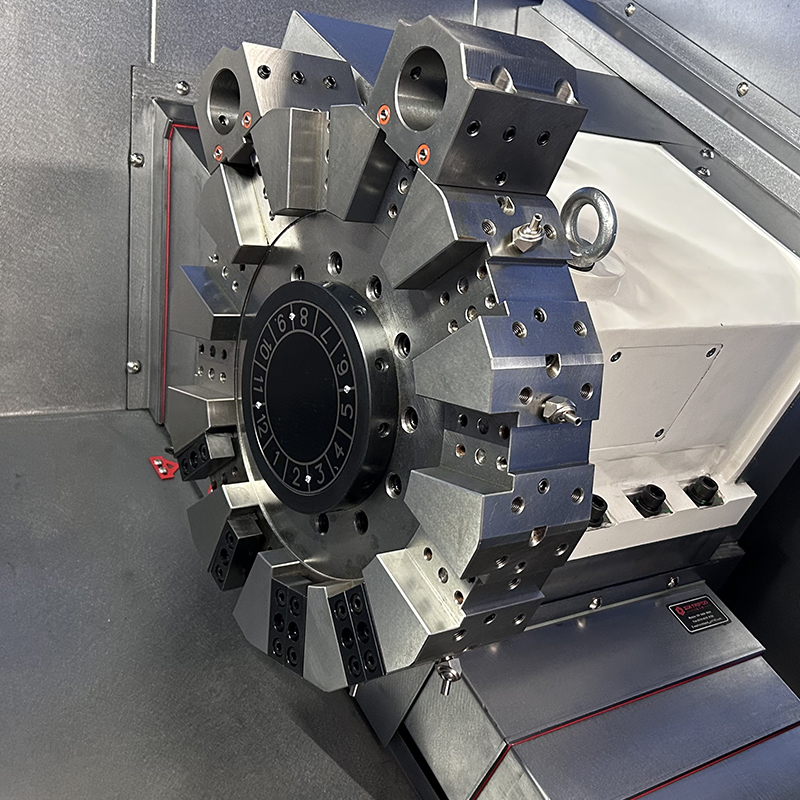

| turret | Turret Type | / | Cutter diameter 420 |
| Adjacent tool change time | S | 0.5 | |
| Number of tools | / | 12 stations | |
| Tool size | mm | 25×2540mm | |
| Dimensions | 3000X1850X1710mm | Weight (approx.) | 4100KG |
