Introduction
1. Main features of cnc lathe machine

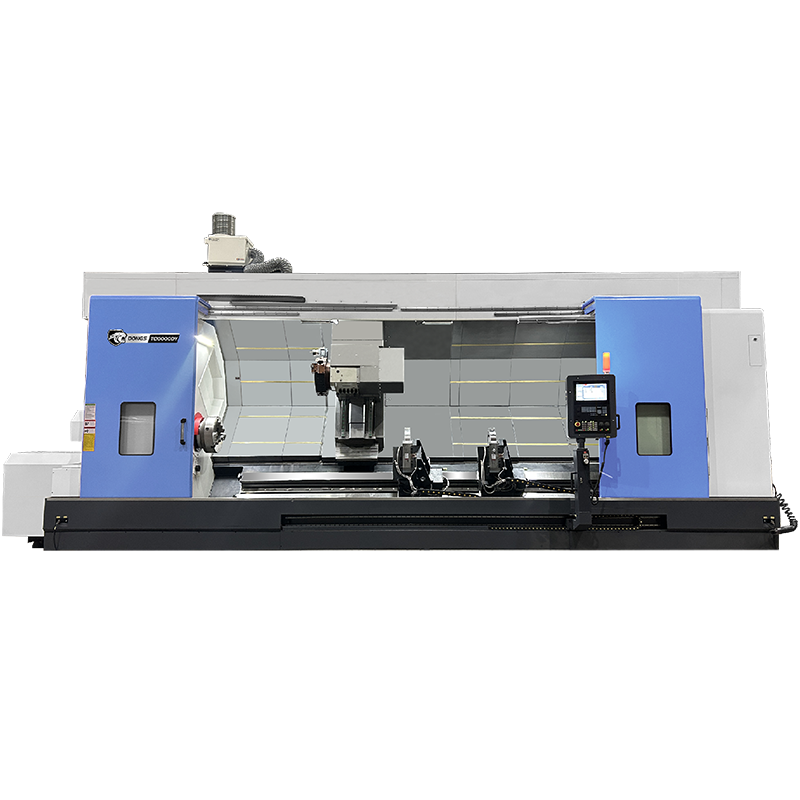

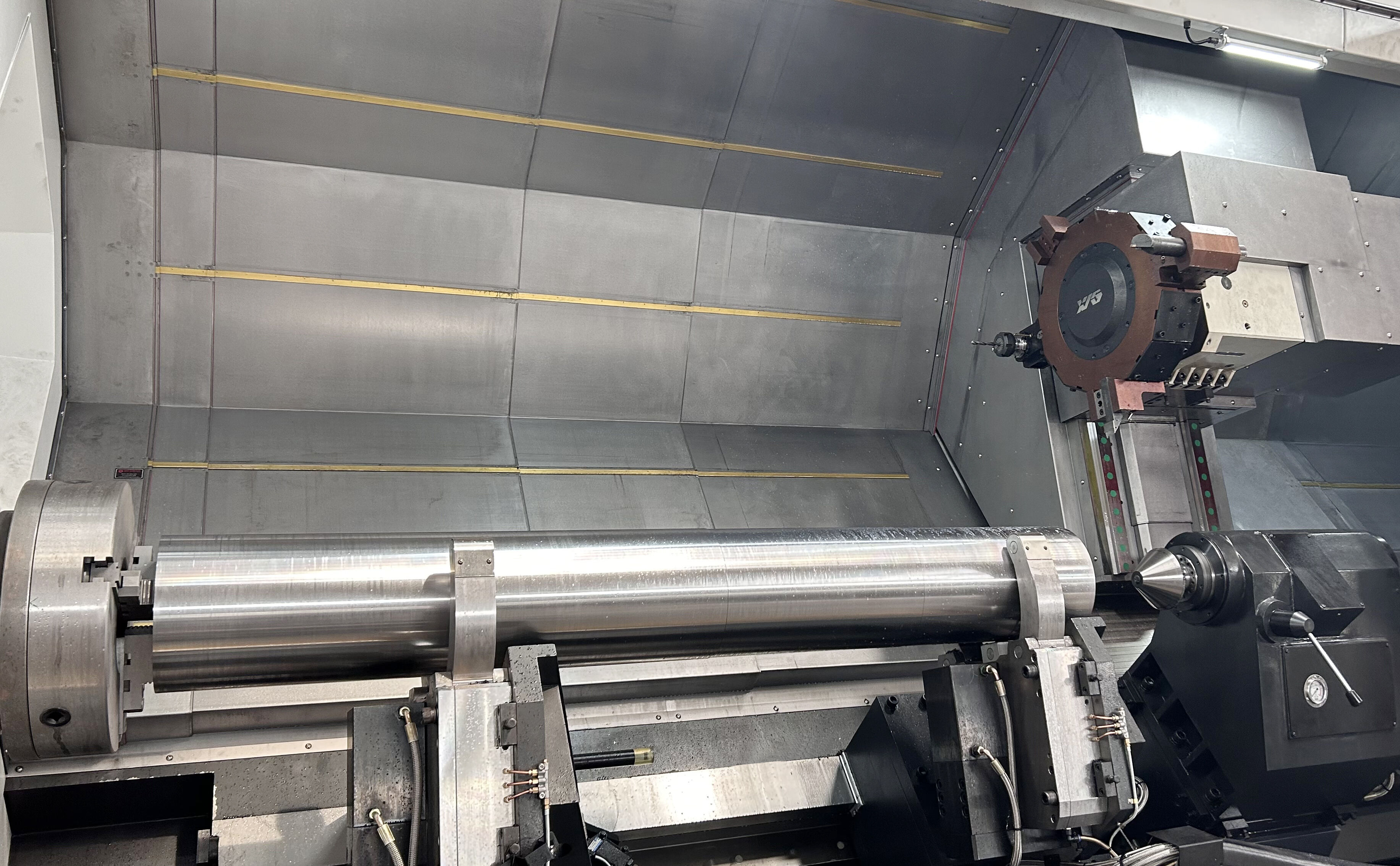

(1) The main body of TCK1000 series cnc lathe machine
adopts a 45-degree inclined integral casting structure, which is manufactured by high-density cast iron combined with resin sand precision molding process. The internal reinforcement rib layout is designed through topological optimization analysis, combined with multiple artificial aging treatments and natural aging processes, which significantly improves the mechanical properties of the basic components and ensures the structural stability and rigidity retention of the equipment under long-term high-intensity operation.
(2)The X and Z axes are equipped with precision linear slide mechanisms, and heavy-duty rolling guide assemblies are used in both axial directions. The Z axis innovatively adopts a six-slide support structure with a centralized automatic lubrication system to effectively reduce friction loss and enhance the load-bearing capacity of the motion system, achieving positioning accuracy and better dynamic response characteristics.

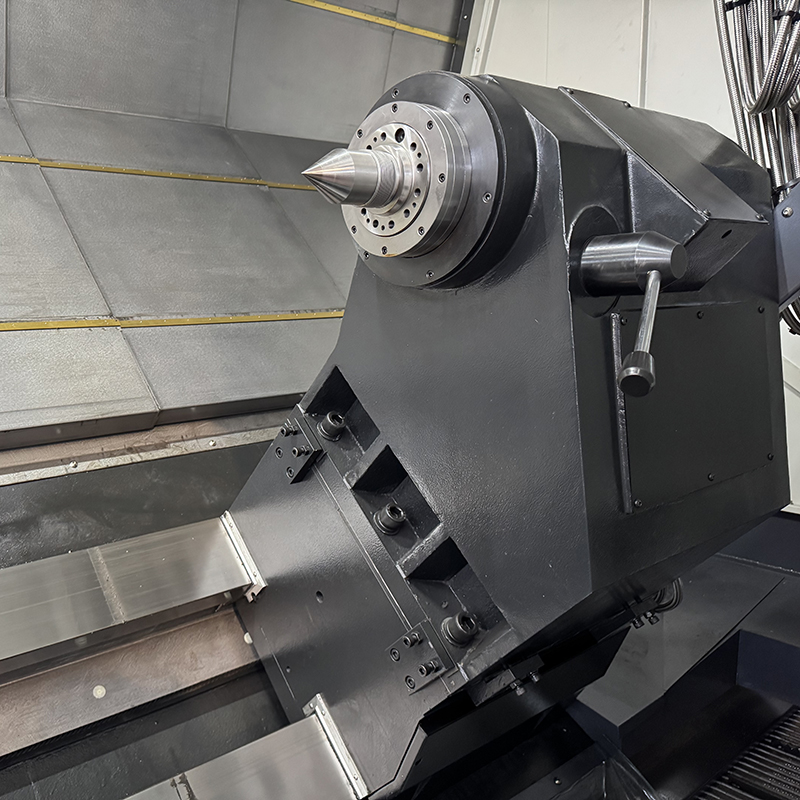

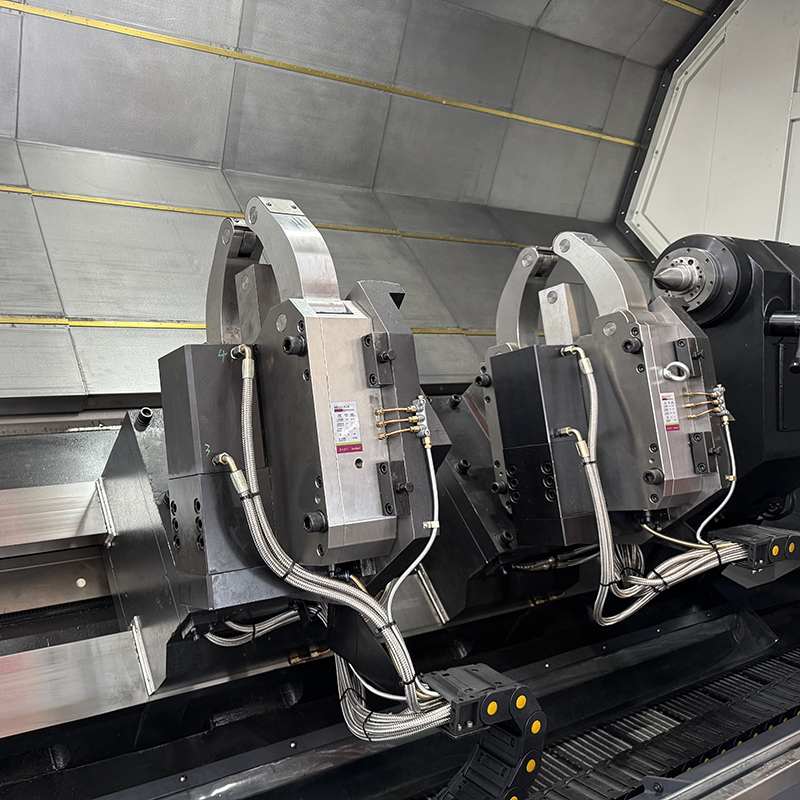

(3)The CNC tailstock unit integrates an intelligent control system, equipped with a hydraulic self-locking device and a built-in rotary mechanism. The standard configuration adopts a fixed center design combined with a hydraulic drive mobile system, and an optional servo motor drive module to provide higher-precision axial positioning support for complex processing.
(4)The spindle adopts a combination of large-diameter precision angular contact thrust ball bearings and double-row cylindrical roller bearings, and cooperates with a high-torque servo spindle motor to achieve constant torque output and excellent anti-deformation ability within a wide speed range.

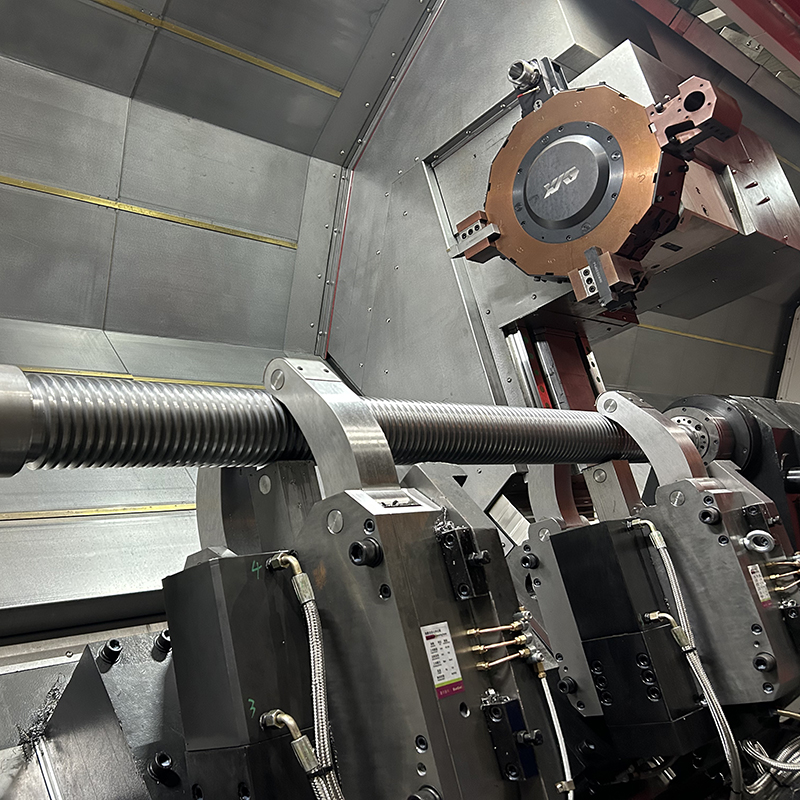

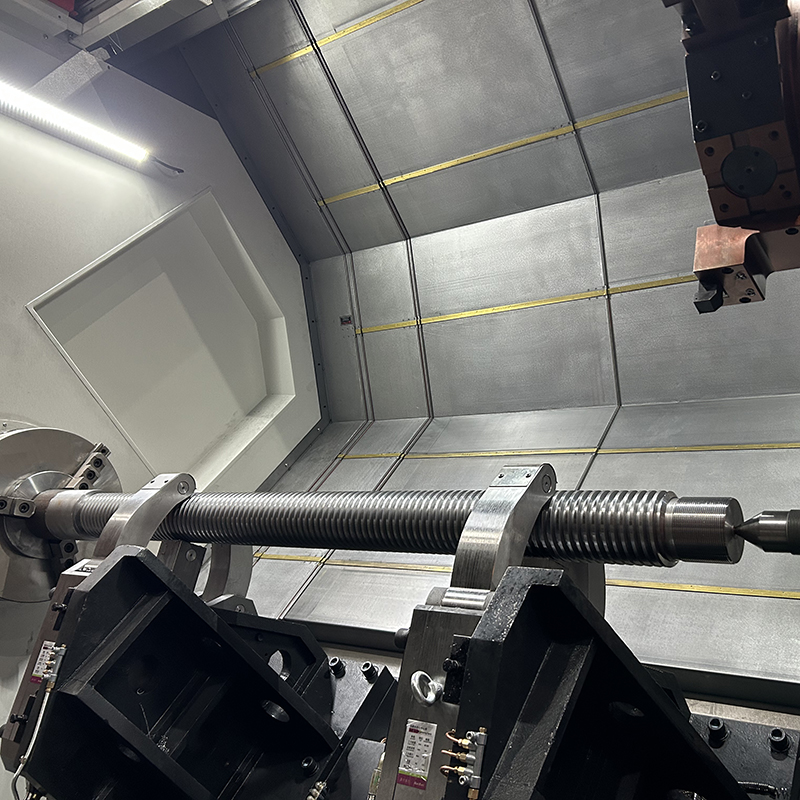

(5)The X and Z ball screws adopt preloaded ball screw pairs, and innovatively apply internal circulation pre-stretched nut technology. The support end uses a special radial thrust ball bearing group with a contact angle of 60 degrees. By optimizing the preload distribution, the axial load-bearing stiffness is effectively improved to ensure the positioning repeatability of the precision transmission system.
2. Main applications of cnc lathe machine
Aerospace: Processing key aerospace components such as turbine blades, engine casings and structural components.
Automobile: Suitable for the production of large automotive parts, including engine blocks, flywheels and crankshafts.
Energy and power generation: Very suitable for processing large components used in power plants, such as turbine shafts and gearbox casings.
Shipbuilding: Used to manufacture large ship components such as propellers, rudders and engine parts.
Defense: Processing of heavy components for military vehicles, tanks and other defense systems.
General Manufacturing: Suitable for heavy-duty machining of industrial parts, molds and mechanical components in various fields.
| Technical specifications | unit | TCK1000D/TCK1000DY | |||||
| Processing range | Maximum turning diameter on the bed | mm | 1220 | ||||
| Maximum turning diameter on the saddle | mm | 820 | |||||
| Maximum turning diameter | mm | 800 | |||||
| Center distance | mm | 1100/1600/2100/3100/4100/5100 | |||||
| Spindle | Spindle head type | mm | A2-15 | ||||
| Spindle through hole diameter | mm | 132 | 181 | 220 | 320 | 375 | |
| Bar diameter ≤ | mm | 120 | 166 | 220 | 320 | 375 | |
| Maximum spindle speed | r/min | 1800 | 1400 | 1000 | 800 | 750 | |
| Main motor rated output | Kw | 37-55 | |||||
| Fixture | Hydraulic chuck | 寸 | 18/21/24/32 | ||||
| Tailstock | Tailstock sleeve travel | mm | 1100/1600/2100/3100/4100/5100 | ||||
| Tailstock diameter | mm | 180 | |||||
| Tailstock travel | mm | 200 | |||||
| Sleeve hole taper | / | MT6 | |||||
| Saddle | Tilt angle | DEG | 45+30 (Y axis) | ||||
| Move distance X | mm | 500 | |||||
| Move distance Y | mm | ±100 | |||||
| Move distance Z | mm | 1000/1500/2000/3000/4000/5000 | |||||
| Rapid moving speed X/Y/Z | m/min | 2016/10/16 | |||||
| Servo motor X/Y/Z | KW | 4 | |||||
| Dota | Form | Power turret | BMT85 12-station power turret | ||||
| Time between tool changes | S | 0.5 | |||||
| Number of tool positions | / | 12 stations | |||||
| Turret diameter | mm | 540 | |||||
| Power tool | / | ER50 | |||||
| Power turret power | kw | 11 | |||||
| Power turret speed | r/min | 1500 | |||||
| Turret size (external diameter/maximum boring hole) | / | 32X32 60 | |||||
